How Porta Cabins Is Manufactured: Step-by-Step Process

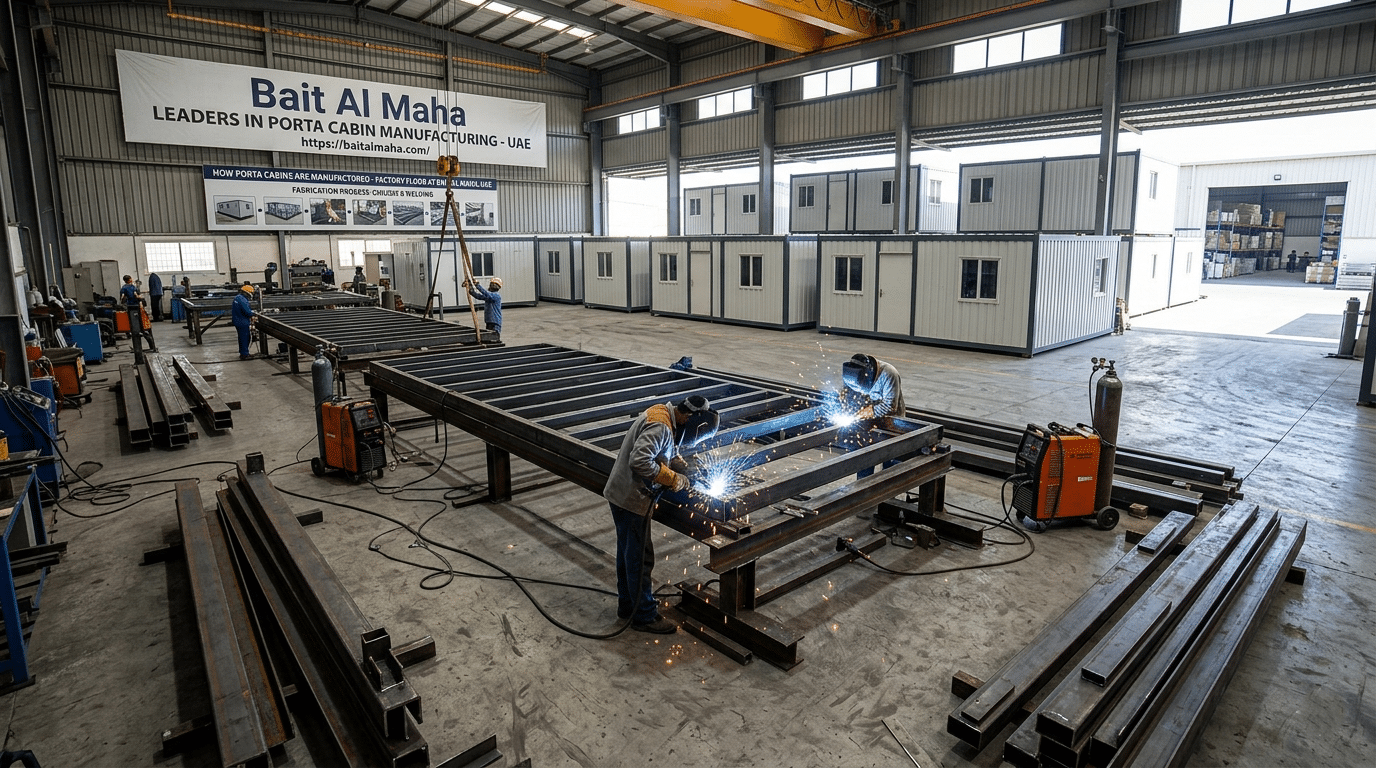

📸 [IMAGE #1 – Hero Banner] Suggested image: Wide-angle factory floor shot showing a porta cabin chassis being fabricated – welders, steel beams, and finished units in background. Alt text: “How porta cabins are manufactured – factory floor at Bait Al Maha, UAE”

Porta cabins are manufactured through a ten-stage, factory-controlled process – starting from CAD design and structural steel chassis fabrication, moving through insulated sandwich panel installation, electrical and plumbing fit-out, surface finishing, and a documented quality control inspection, before being delivered fully assembled or flat-packed to site. A standard unit is typically ready in five to seven working days.

This guide walks through every stage of how porta cabins are manufactured – with the exact materials, technical specifications, and quality checkpoints used in professional modular construction across the UAE and GCC. Whether you are a procurement manager evaluating suppliers, a site engineer planning a labour camp, or a project director comparing options, this is the detail that most manufacturer brochures leave out.

Table of Contents

1. What Is a Porta Cabin and Where Are They Used?
2. Step 1 – Client Briefing, Design, and CAD Engineering
3. Step 2 – Raw Material Procurement and Quality Verification
4. Step 3 – Steel Chassis Fabrication
5. Step 4 – Insulated Sandwich Panel Installation
6. Step 5 – Doors, Windows, and Façade Components
7. Step 6 – Electrical System Installation and Testing

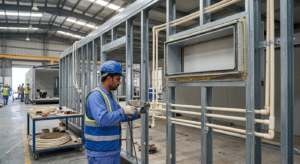

8. Step 7 – Plumbing, HVAC, and Mechanical Fit-Out

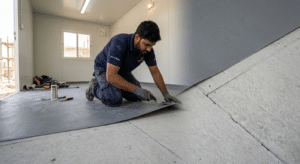

9. Step 8 – Flooring: Sub-Floor Board and Finish Surface
10. Step 9 – Internal Fit-Out, Ceilings, and External Painting
11. Step 10 – Quality Control, Load Testing, and Certification

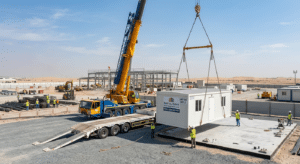

12. Step 11 – Delivery, Logistics, and Site Preparation
13. Key Materials at a Glance

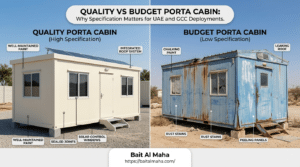

14. What Separates a Quality Porta Cabin from a Budget One
15. Frequently Asked Questions

What Is a Porta Cabin and Where Are They Used?

A porta cabin is a factory-manufactured, relocatable modular structure built from a hot-dip galvanised steel frame and insulated sandwich panels. It is deployed as a:

• Site office for construction project management.
• Accommodation block for labour camps and worker housing.
• Toilet and shower unit for welfare compliance on large sites.
• Security cabin for access control and guard posts.
• Classroom or clinic for education and healthcare applications.
• Storage unit or specialist room such as a server cabin, laboratory, or control room.

In the UAE, Saudi Arabia, Qatar, Oman, and across the broader GCC, porta cabins are also referred to as portable cabins, prefab cabins, modular cabins, site cabins, or prefabricated units. All names refer to the same product. The spelling may vary; the structure does not.

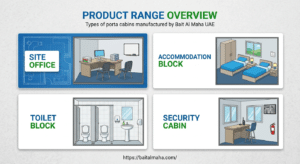

📸 [IMAGE #2 – Product Range Overview] Suggested image: A clean flat-lay or grid-style graphic showing different porta cabin types – site office, accommodation block, toilet block, security cabin. Alt text: “Types of porta cabins manufactured by Bait Al Maha UAE – site offices, accommodation, welfare blocks”

Porta Cabin vs. Similar Structures: The Key Differences

Many buyers in the UAE and GCC treat these product types interchangeably. They are not the same, and the difference matters when specifying for a real project.

Structure	Built From	Relocatable	Best For
Porta Cabin	New steel frame + insulated panels	Yes – crane-lift or flat-pack	Site offices, accommodation, welfare units
Container Conversion	Retired shipping container	Yes – but much heavier	Storage, rugged industrial use
Permanent Modular Building	Factory modules to full building-code spec	No – designed to stay in place	Schools, clinics, long-term offices
Prefab Home	Off-site panels on permanent foundation	No	Residential housing

The porta cabin is the right choice when you need:

• Fast factory-to-site deployment.
• Full customisation of layout, fit-out, and specification.
• Strong thermal performance for a hot-climate environment.
• The ability to relocate when the project moves on.

Where Porta Cabins Are Used Across the UAE and GCC

The application range across the region is broader than most buyers initially expect:

• Construction and infrastructure projects – site offices, double-storey project management blocks, supervisor cabins, and worker accommodation on highways, airports, and major developments such as NEOM in Saudi Arabia.
• Oil and gas sites – welfare units, laboratory cabins, control rooms, and ADNOC-standard portable toilet units for onshore and offshore facilities.
• Labour accommodation villages – multi-storey stacked accommodation blocks, mass halls, prayer rooms, ablution facilities, and laundry units for large workforces.
• Healthcare and emergency response – temporary clinics, isolation units, first aid stations, and medical triage facilities, including rapid deployment during the COVID-19 pandemic.
• Government and military – command posts, border security checkpoints, Civil Defence facilities, and emergency response units.
• Education – temporary classrooms and administrative offices during school construction or campus expansion.
• Retail and events – food kiosks, gas pump cabins, ticket booths, retail pop-ups, and exhibition facilities.

The demand is significant and growing. The GCC prefabricated housing and modular construction market was valued at USD 14.68 billion in 2025 and is projected to reach USD 23.25 billion by 2030 at a 9.63% compound annual growth rate (Mordor Intelligence, 2025). According to the Gulf Construction Innovation Council, modular construction reduces on-site labour by up to 60% and cuts construction waste by 35% compared to traditional building methods.

Step 1 – Client Briefing, Design, and CAD Engineering

⏱ Stage Duration: 1–3 working days (standard units) | 5–7 working days (fully custom)

The manufacturing of porta cabins begins at an engineering desk, not on the factory floor. Whether a client needs a single security cabin or a 500-unit labour accommodation village, every unit starts with a structured intake conversation between the client and the manufacturer’s engineering team.

📸 [IMAGE #3 – CAD Design / Engineering Stage] Suggested image: Engineer working on dual-screen workstation showing porta cabin CAD drawings and BOQ spreadsheet. Alt text: “Porta cabin CAD design and engineering process – Bait Al Maha modular construction UAE”

What a Professional Engineering Intake Covers

A thorough briefing establishes all of the following before a single dimension is drawn:

• Intended use – Is this a site office, accommodation cabin, toilet block, kitchen unit, or specialist application such as a server room or medical station? The intended use determines the structural, electrical, and mechanical specification from the very first line of the design.
• Site location and climate zone – A porta cabin for a site in Riyadh, where summer ambient temperatures exceed 50°C, requires fundamentally different insulation and glazing from one going to a milder location. UAE buildings facing the western sun require solar control glass and minimum 75mm PU panels.
• Occupancy and usage pattern – Governs the electrical load calculation, ventilation design, and number of plumbing fixtures for welfare units.
• Utility availability on site – Mains electricity and pressurised water, or generator supply and roof-mounted water tank? This decision directly changes how internal systems are configured and priced.
• Intended lifespan – An 18-month construction project specification differs significantly from a semi-permanent facility intended to remain in place for 15 years or more.
• Stacking requirements – If units will be stacked into two- or three-storey blocks, the chassis dimensions and corner post specification must be engineered for vertical loading from the design stage – not retrofitted later.
• Regulatory approvals required – UAE Civil Defence approval is mandatory for occupied accommodation blocks using fire-rated construction. ADNOC- and Saudi Aramco-standard projects require third-party-stamped structural drawings before any unit is installed on site.

The CAD Design Output

Once the briefing is complete, structural and MEP (mechanical, electrical, and plumbing) engineers produce the following full documentation package:

• General Arrangement (GA) drawing – fully dimensioned plan showing every internal and external feature.
• Structural drawing – member sizes, connection details, and verified load calculations.
• Electrical single-line diagram – distribution board layout, circuit breaker ratings, wiring routes, and the total load schedule.
• Mechanical and plumbing schematic – applies to all units with HVAC, wet services, or drainage requirements.
• Bill of Quantities (BOQ) – itemised materials list tied directly to the approved design, used for cost control and procurement transparency.

The client reviews and approves all documents before any steel is cut. A design error identified at the CAD stage costs nothing to correct. The same error found after fabrication has started can add 30–40% to the total unit cost.

Step 2 – Raw Material Procurement and Quality Verification

⏱ Stage Duration: Concurrent with design for standard materials | 3–5 additional days for specialist items

The quality of a finished porta cabin is determined before the first weld is struck. The structural steel, sandwich panels, and ancillary materials selected here define the cabin’s thermal performance, structural integrity, and real-world service life – in many cases for 25 years or more.

This is also the stage where budget suppliers substitute inferior materials that look identical from the outside but fail over a five-year UAE deployment.

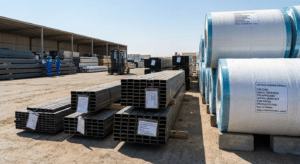

📸 [IMAGE #4 – Raw Materials / Steel Yard] Suggested image: Stacked RHS steel sections and sandwich panel rolls in a factory materials yard, with visible certification tags. Alt text: “Certified structural steel and sandwich panels for porta cabin manufacturing in UAE”

Structural Steel: What the Correct Specification Looks Like

A quality porta cabin frame uses S275 or S355 grade structural steel, certified to BS EN 10025. These grades provide:

• S275 – minimum yield strength of 275 N/mm².
• S355 – minimum yield strength of 355 N/mm².

After fabrication, the steel chassis undergoes hot-dip galvanising to BS EN ISO 1461, applying a zinc coating of:

• Minimum 45 microns on standard steel sections.
• Up to 85 microns on heavier structural members.

In the UAE’s coastal and high-humidity environments, this galvanised coating is what enables a quality porta cabin to reach its 25–30 year design lifespan. Without it, surface rust appears within 12–24 months of installation.

Every steel delivery must be accompanied by a Mill Test Certificate (MTC) – the steel mill’s documented confirmation of chemical composition and mechanical properties for that production batch. Buying a porta cabin without verifying that the manufacturer holds MTCs is comparable to buying a vehicle with no service history.

⚠ Common Budget Substitution to Watch For: S235 grade steel (yield strength 235 N/mm²) with uncertified, inconsistent wall thickness. The finished cabin looks identical from the outside. The structural performance in service is not.

Sandwich Panel Core Materials: The Three Options

Insulated sandwich panels consist of two pre-painted galvanised steel facings (0.4–0.5mm thick) bonded to a rigid insulation core. The core material determines thermal performance, fire rating, and correct application:

1. Polyurethane (PU) Foam Core

• Thermal conductivity: λ = 0.022–0.025 W/m·K
• Best thermal performer of the three core types.
• GCC standard for office and accommodation porta cabins.
• Fire-retardant grades are available – always specify for any occupied building.

2. Expanded Polystyrene (EPS) Core

• Thermal conductivity: λ = 0.036–0.038 W/m·K
• More economical than PU; adequate for low-heat applications and mild climates.
• Not recommended as the standard specification for GCC deployments where summer ambient temperatures regularly exceed 45°C.

3. Rockwool (Mineral Wool) Core

• Thermal conductivity: λ = 0.040 W/m·K
• Inherently non-combustible. Class A1 fire rating to EN 13501-1.
• The correct choice for fire-rated accommodation blocks, hazardous area facilities, and any application where UAE Civil Defence regulations require a defined fire resistance period.

✅ Material Certification Checklist for Buyers

Before any purchase order is signed, confirm your manufacturer holds all of the following:

• ✅ Mill Test Certificates (MTC) for all structural steel used in chassis fabrication.
• ✅ CE marking or equivalent third-party test certification for the sandwich panels.
• ✅ MSDS (Material Safety Data Sheet) for PU foam core, confirming the fire-retardant additive grade and concentration.
• ✅ Third-party fire test report to BS 476 or EN 13501 for the specific panel product being used.
• ✅ CPVC pipe certification confirming a 93°C continuous service rating for all hot water plumbing (see Step 7).

If a manufacturer cannot produce these documents on request, treat it as a serious quality red flag before committing any funds.

Step 3 – Steel Chassis Fabrication: Base Frame, Columns, and Roof Frame

⏱ Stage Duration: 1–2 days for a standard single unit

The steel chassis is the load-bearing backbone of every porta cabin that is manufactured. It must carry all of the following simultaneously:

• Dead loads – the permanent self-weight of all panels, fit-out, flooring, and finishes.
• Live loads – occupants, furniture, equipment, and stored materials.
• Wind loads – lateral pressure on walls and uplift forces on the roof.
• Superimposed loads – for stackable units, the full weight of all units above, transmitted through the corner posts to the ground.

Every other component in the cabin is only as good as the chassis it sits on.

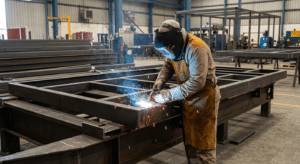

📸 [IMAGE #5 – Chassis Welding on Factory Floor] Suggested image: Coded welder in full PPE MIG welding a porta cabin base frame on a fabrication bed, sparks and weld pool visible. Alt text: “Steel chassis fabrication for porta cabin manufacturing – MIG welding at Bait Al Maha factory, UAE”

Step 3a – Base Frame Fabrication

The base frame uses Rectangular Hollow Section (RHS) steel beams, sized by the structural engineer based on span and calculated loading:

• 100mm × 50mm × 4mm wall thickness – standard specification for office and accommodation cabins.
• 150mm × 100mm × 5mm – heavy-duty applications, including generator plinths, server room floors designed for concentrated rack loads, and multi-storey stacking bases.

The fabrication sequence is as follows:

1. RHS members are cut to exact length using CNC plasma or laser cutting machines, eliminating the dimensional inconsistency produced by manual angle grinding.
2. Cut members are assembled into a rectangular grid on a flat, level fabrication bed to control squareness across the full frame.
3. All connections are MIG (Metal Inert Gas) welded by coded welders holding current certification.
4. Welds are inspected by a certified welding inspector to AWS D1.1 or BS EN ISO 15614. Every load-bearing weld must show full penetration and be free of porosity, undercut, and cracking before the frame advances.

Step 3b – Corner Post Installation

The four corner posts are the most structurally critical elements in the entire chassis. They simultaneously serve three functions:

• They carry all crane-lift loads during delivery and site installation.
• They are the connection points for joining multiple units side-by-side or end-to-end.
• They transmit the full superimposed load from stacked upper units down through the chassis to the foundation below.

For stackable porta cabins, corner posts are fitted with ISO 1161-compliant corner fittings – the same international standard used on ocean freight containers – allowing certified twist-lock stacking connectors to be used safely at every level.

A standard 6m × 3m chassis correctly engineered for stacking carries 4.0–6.0 kN per corner post, calculated to BS EN 1991-1 (Eurocode 1).

⚠ Safety Note: A cabin that was not specifically engineered for stacking must never be placed in a multi-storey configuration. This is a life-safety structural requirement, not a specification preference.

Step 3c – Roof Frame Fabrication

The roof frame mirrors the base frame in fabrication method but is engineered for wind uplift and maintenance access loads rather than vertical compression. The roof profile is determined at the design stage based on site geography:

• Flat roof (1–2% drainage fall) – standard across the UAE and most GCC locations where rainfall is infrequent and light.
• Mono-pitch (single-slope, 5–10°) – specified for regions with seasonal rainfall, including some northern GCC locations and East African project sites, where rapid drainage is required.

Step 3d – Hot-Dip Galvanising: Five Sequential Stages

Once the complete welded chassis passes weld inspection, it undergoes hot-dip galvanising – the corrosion protection process that determines how long the chassis remains structurally sound in service.

The five stages of the process are:

1. Degreasing – the steel is immersed in a hot alkaline solution to remove all oil, grease, and surface contamination.
2. Pickling – the steel passes through a dilute hydrochloric acid bath to remove mill scale and surface rust, leaving a chemically clean steel surface.
3. Fluxing – a zinc ammonium chloride flux coating prevents re-oxidation of the clean surface and promotes the metallurgical bonding that follows.
4. Galvanising – the steel is immersed in molten zinc at approximately 450°C, forming a series of zinc-iron alloy interlayers topped with a pure zinc outer layer. This is a metallurgical bond formed within the steel surface – not a coating applied on top of it.
5. Inspection – a calibrated magnetic DFT (Dry Film Thickness) gauge confirms the zinc layer meets the minimum coating thickness required by BS EN ISO 1461.

In UAE and GCC coastal environments, an ungalvanised chassis will show surface rust within 12–24 months and structural corrosion within 5–8 years in saline air. The galvanising step is not optional.

Step 4 – Insulated Sandwich Panel Installation: Walls and Roof

⏱ Stage Duration: Half a day to 1 full day per unit

The insulated sandwich panels form the thermal envelope of every porta cabin that is manufactured. They provide the insulation performance, acoustic properties, and weathertight outer skin. Fitting them correctly is just as important as specifying the right panel type – a premium panel with poorly sealed joints will perform no better in service than a budget one.

📸 [IMAGE #6 – Sandwich Panel Installation] Suggested image: Workers installing insulated sandwich wall panels onto a galvanised steel chassis in a factory setting. Alt text: “Insulated sandwich panel installation in porta cabin manufacturing – Bait Al Maha UAE”

Panel Thickness: The GCC Standard Is Not the European Standard

This is one of the most consequential specification decisions in the entire manufacturing process. The numbers speak clearly:

Panel Option	U-Value	AC Load Impact	Recommended for UAE/GCC?
50mm PU panel	~0.44 W/m²·K	High cooling load	❌ Insufficient – European climate spec
75mm PU panel	~0.28 W/m²·K	25–35% lower AC load	✅ GCC standard minimum
100mm PU panel	~0.21 W/m²·K	Lowest cooling load	✅ Cold rooms, blast-rated applications

European-manufactured porta cabins are routinely supplied with 50mm panels. In a UAE summer at 50°C ambient, that specification is inadequate. The 75mm PU panel is the correct working minimum for all deployments across the UAE, Saudi Arabia, Qatar, and Oman.

Wall Panel Installation: The Process

Wall panels are secured to the chassis frame using one of two fixing methods:

• Self-drilling screws with EPDM-backed washers – the standard fixing system, providing mechanical connection and a weatherproof seal at each fastener point.
• Concealed clip systems – used where a clean, flush, fastener-free external appearance is required.

Every horizontal joint between adjacent panels is sealed with neutral-cure silicone sealant. Neutral-cure is specified over acetoxy-cure silicone because acetoxy products release acetic acid during curing, which accelerates corrosion of galvanised steel at every panel joint they contact.

An unsealed panel joint allows warm, humid air to penetrate the cavity, condense on the inner face, and drive mould growth and steel facing corrosion. Beyond occupant discomfort, an inadequately sealed thermal envelope increases air-conditioning energy consumption by 8–12% over the cabin’s operating life.

Roof Panel Installation: The Full Sequence

1. Panels are laid in overlapping rows with a minimum 200mm lap at every joint.
2. Butyl tape is applied continuously at all laps before panels are pressed together – providing the primary waterproof seal.
3. Concealed fasteners secure each panel into the roof frame below.
4. Aluminium ridge cappings and eave flashings are fixed over all exposed panel edges.
5. A continuous silicone bead is applied to seal all flashing-to-panel interfaces.
6. For flat roofs, a bituminous waterproof membrane is bonded over the full panel surface, lapped and sealed at all exposed edges and service penetrations.

Step 5 – Doors, Windows, and Façade Components

⏱ Stage Duration: 2–4 hours per unit

Doors and windows are not cosmetic choices. In the UAE and GCC, the glazing specification directly determines interior temperature and the running cost of air conditioning. The door specification determines security, fire resistance, and the long-term integrity of the thermal envelope.

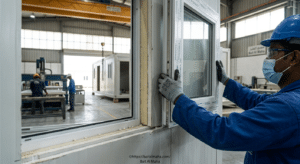

📸 [IMAGE #7 – Window and Door Installation] Suggested image: Factory worker fitting a double-glazed PVC window frame into a pre-cut panel opening. Show the precision of the CNC-cut opening edges. Alt text: “Window and door installation in porta cabin manufacturing – precision CNC factory cutting UAE”

Window Specification for UAE and GCC Climates

Standard porta cabin windows use PVC or aluminium-framed double-glazed units in a 6/12/6 configuration:

• 6mm outer glass pane.
• 12mm argon-filled cavity.
• 6mm inner glass pane.
• Centre-pane U-value: 1.2–1.6 W/m²·K – substantially better than single glazing at approximately 5.8 W/m²·K.

For UAE and GCC installations, solar control (tinted or reflective) glass is strongly recommended:

• A solar factor (g-value) of 0.3–0.4 blocks 60–70% of incoming solar radiation.
• On a west-facing cabin façade under afternoon UAE sun, solar control glass can reduce the cooling load through the glazed area by 40–60%.
• Over the working life of a large accommodation village, the energy saving across all windows compounds to a significant operational cost reduction.

Door Specification

External doors in a quality porta cabin are insulated steel sandwich doors featuring:

• PU foam-filled door leaf, 40–45mm thick, faced with pre-painted galvanised steel on both inner and outer faces.
• Formed steel door frame with continuous EPDM weatherseal around the full perimeter.
• Three-point locking mechanism for security.

For occupied accommodation blocks, fire-rated door sets are required wherever UAE Civil Defence regulations or the project safety case specifies:

• FD60 – 60-minute fire resistance to BS 476 Part 22.
• FD90 – 90-minute fire resistance to BS 476 Part 22.

Important: A fire-rated door leaf installed in a standard non-rated frame does not constitute a certified fire-resisting doorset. The complete assembly – leaf, frame, intumescent seals, and self-closing device – must be tested and certified together as a unit.

Pre-Cut Panel Openings: A Critical Quality Indicator

All door and window openings must be CNC-router-cut in the factory, to exact dimensions with clean, sealed edges, before the panels are installed in the chassis frame.

On-site cutting with an angle grinder causes the following, which cannot be undone:

• Damages and compresses the insulation core material at the cut edge.
• Creates a permanent unsealed thermal bridge that admits warm air and moisture.
• Voids the panel manufacturer’s warranty for that panel.
• Reduces the structural integrity of the panel at and around the opening.

If a supplier proposes to cut door or window openings on site as standard practice, treat it as a quality warning sign and ask why.

HVAC Sleeve Provision – Non-Negotiable for the GCC

Every porta cabin manufactured for UAE and GCC deployment should include pre-installed HVAC sleeve openings – typically 300×300mm to 350×350mm, sized for a 1–1.5 tonne wall-mount split air-conditioning unit.

The sleeve assembly includes:

• A formed steel surround factory-fitted into the panel opening.
• Sealed edges with thermal break detail.
• A frame designed to accept the indoor unit wall bracket and refrigerant pipe passage.

Many imported European and Asian cabins omit this provision entirely, leaving site teams to cut their own openings in installed panels – an action that permanently compromises both thermal and structural performance.

Step 6 – Electrical System Installation and Testing

⏱ Stage Duration: Half a day to 1 full day per unit

The electrical installation in a porta cabin is a permanent system. The wiring is concealed inside the wall panels before surface finishes are applied. There is no practical way to upgrade or reroute it after completion without significant disruption and cost. Getting the design and installation right at the factory stage is the only real opportunity to do so.

📸 [IMAGE #8 – Electrical Distribution Board and Wiring] Suggested image: Close-up of a neatly wired MCB distribution board inside a porta cabin, with labelled circuits and RCD clearly visible. Alt text: “Electrical installation and distribution board in manufactured porta cabin – BS 7671 certified”

Step 6a – Electrical Load Calculation

Before a single cable is run, the engineer calculates the total connected load for the specific cabin configuration:

• Standard single-room office cabin – one 1-tonne AC unit, four double socket outlets, LED lighting – total connected load typically 4–7 kW, requiring a 32-amp single-phase supply.
• Multi-room accommodation blocks with multiple AC units – three-phase supply required; board size and incoming cable rating determined by calculated maximum demand.

Undersized electrical design produces tripped circuit breakers under normal daily use, premature cable insulation degradation, and – at the extreme – fire risk from sustained overcurrent in cables too small for the load.

Step 6b – Concealed Conduit Wiring: The Quality Standard

All wiring must be routed in rigid UPVC conduit, fixed inside the panel cavity or ceiling void before surface finishes are applied. This approach delivers the following benefits:

• Protects cables from mechanical damage throughout the cabin’s full working life.
• Allows individual circuits to be traced and isolated in a fault condition without disturbing the internal finishes.
• Produces a professional result with no exposed conduit, trunking, or cable runs on wall or ceiling surfaces.
• Meets BS 7671 (IEE Wiring Regulations) requirements for cable protection in permanent electrical installations.

Surface-mounted conduit is acceptable only in storage or plant room applications – never in occupied offices or accommodation.

Step 6c – Standard Electrical Fit-Out: What Every Occupied Unit Includes

Fixed as standard on all occupied porta cabins:

• Main distribution board – 63A or 100A incoming isolator switch with individually rated MCB protection for every circuit.
• 30mA RCD (residual current device) protecting all socket circuits. This is a life-safety device that detects earth leakage faults and must not be omitted in any occupied building.
• Minimum two 13A switched double socket outlets per room, at working height, wired to BS 1363.
• LED light fittings – recessed into the suspended ceiling grid or surface-mounted, depending on the ceiling type specified.
• Complete earthing system – dedicated earth bar in the distribution board, bonded to the cabin chassis and to the site earth electrode.
• AC provision – dedicated double-pole circuit breaker and pre-installed HVAC wall sleeve.

Optional additions available to specification:

• Three-phase distribution board for multiple AC units or heavy plant equipment.
• Data and IT trunking with Cat6 RJ45 data points for networked office environments.
• Emergency lighting with battery backup, required for larger GCC accommodation blocks under many site safety standards.
• Solar-ready wiring provision for remote sites and sustainability-programme projects.
• External weatherproof socket outlets for tool power distribution around the cabin exterior.

Step 6d – Four Mandatory Electrical Tests Before Delivery

Every cabin must pass all four tests to BS 7671 before it leaves the factory:

1. Insulation resistance test – minimum 1 MΩ between any live conductor and earth. Confirms all cable insulation is intact and no short circuits are present.
2. Continuity of protective conductors – confirms the earth path is complete and unbroken from every socket and light fitting back to the distribution board earth bar.
3. Polarity verification – confirms live, neutral, and earth are correctly connected at every outlet and fitting throughout the installation.
4. Earth fault loop impedance test – confirms that in a live-to-earth fault condition, sufficient fault current will flow to operate the protecting MCB within the disconnection time required by BS 7671.

Results are recorded on an Electrical Installation Certificate, which is issued to the client alongside the cabin.

Step 7 – Plumbing, HVAC, and Mechanical Fit-Out

⏱ Stage Duration: Half a day to 2 days, depending on scope

Not all porta cabins require plumbing. An office cabin typically needs HVAC provision only. A toilet block needs a full wet services installation. A kitchen cabin needs both. The mechanical fit-out is entirely purpose-specific – and this is where the specification differences between cabin types are most significant.

📸 [IMAGE #9 – Plumbing and HVAC Fit-Out] Suggested image: Factory worker routing CPVC pipework inside a porta cabin frame before panel cladding is applied. Show visible pipework, fittings, and wall sleeve for AC unit. Alt text: “Plumbing and HVAC installation in porta cabin manufacturing – CPVC pipework, GCC climate specification”

Office Cabin: Mechanical Scope

For a standard office unit, the mechanical requirements typically cover:

• Split air-conditioning unit – installed or provisioned – sized at 350–500 BTU per square foot of floor area for GCC ambient conditions.
• Exhaust fan provision for any integral toilet compartment.
• 25mm AC condensate drain routed through the wall or floor panel to discharge condensate water away from the building structure.

Accommodation and Welfare Cabin: Full Plumbing Scope

For cabins used as sleeping accommodation or welfare facilities, the installation includes:

• Cold water supply – isolation valve, pressure-reducing valve (where mains pressure exceeds 3 bar), and CPVC distribution pipework to all outlets.
• Hot water system – electric storage water heater (15–25 litres for single-room; larger centralised units for multi-room blocks), connected to all hot outlets via CPVC pipework.
• Waste drainage – 40mm waste pipes from basins, 50mm from shower trays, and 110mm soil pipe from WC pans, all routed to the external ground-level connection point.
• Soil vent pipe – 50mm SVP extended above roof level to prevent trap siphoning and eliminate drain odours from the occupied space.

⚠ Why CPVC Pipe Is Non-Negotiable in the UAE and GCC

All hot water pipework must use CPVC (chlorinated polyvinyl chloride), rated to a continuous service temperature of 93°C. Standard PVC pipe is rated to only 60°C. In a UAE summer, water sitting in a cold supply pipe exposed to direct sunlight can reach 45–55°C – leaving almost no margin before standard PVC reaches its thermal limit. On the hot water side, standard PVC fails entirely. This is a recurring and entirely preventable failure mode in imported cabins not specified for Gulf conditions.

Toilet and Shower Block: Full Fit-Out Scope

Purpose-built welfare blocks are fitted with all of the following:

• IPS (Intermediate Panel System) boxing – conceals cisterns and pipework behind clean, removable access panel faces.
• Close-coupled or wall-hung WC pans with dual-flush cisterns.
• Shower trays with thermostatic or manual mixer valves, curtain rails, or glass screens.
• Pedestal or wall-hung washhand basins with monobloc mixer taps.
• Soap dispensers, paper roll holders, towel rails, shelving, and mirrors throughout.
• Anti-slip ceramic floor tiles – R10 or R11 rated for wet barefoot conditions. Mandatory in all wet areas by UAE safety standards.
• Cubicle partitions – full-height or standard-height, specified according to gender and privacy requirements.
• Roof-mounted GRP (glass-reinforced plastic) water tank – 500 to 2,000 litres – for sites without a pressurised mains water connection.

Welfare provision benchmark (HSE/NEBOSH guidance): One WC per ten workers on mixed-use construction sites. Separate facilities for male and female workers are required wherever both groups are present.

Step 8 – Flooring: Sub-Floor Board and Finish Surface

⏱ Stage Duration: 2–4 hours per unit

The porta cabin floor is a two-layer system: a structural sub-floor board fixed directly to the steel chassis, and a functional or decorative finish surface applied on top. Both layers require correct specification based on the cabin’s use type and the site climate.

📸 [IMAGE #10 – Flooring Installation] Suggested image: Worker laying heavy-duty PVC vinyl flooring over a fibre cement board sub-floor in a porta cabin. Show the visible sub-floor layer at one corner being overlapped by the new finish. Alt text: “Two-layer porta cabin floor installation – fibre cement board and PVC vinyl finish, UAE”

Sub-Floor Board: Two Main Options

Fibre Cement Board (FCB) – the GCC Standard

• Thickness: 12mm.
• Density: 1,200–1,400 kg/m³.
• 100% moisture-resistant – does not swell, delaminate, or support mould or bacterial growth.
• Class A fire rating.
• The correct sub-floor specification for all occupied porta cabins in the UAE, Qatar, Kuwait, and other coastal GCC environments.

Marine-Grade Plywood – for Specific High-Load Applications

• Thickness: 18mm, manufactured to BS 1088.
• Higher structural load capacity – preferred for server room cabins with raised floor tile loading and generator room floors.
• Requires moisture barrier treatment in humid environments.
• Not recommended as a wet-area sub-floor without significant additional moisture protection.

Floor Finish: Five Options with Recommended Use Cases

1. Heavy-duty PVC vinyl (2mm) – the standard finish for all offices and accommodation. Full-spread adhesive bonded with heat-welded seams. Durable, easy to clean, and resistant to heavy foot traffic and furniture movement.
2. Anti-static vinyl – specified for server rooms, telecoms equipment rooms, and any environment where electrostatic discharge (ESD) could damage sensitive electronics or create a safety hazard.
3. Ceramic tiles – used in all wet areas: toilet blocks, shower rooms, and kitchen cabins. Fixed with waterproof tile adhesive and grouted with waterproof grout on a moisture-protected sub-floor.
4. Click-lock laminate – specified for executive office cabins requiring a higher-quality finish. Not recommended in areas adjacent to plumbing outlets due to laminate’s lower tolerance for edge moisture.
5. Epoxy-coated FCB – a two-coat epoxy system applied directly over the bare fibre cement board. Used in storage units, plant rooms, and generator enclosures where chemical resistance and durability matter more than aesthetics.

Safety Requirement: All wet area floor finishes must carry an anti-slip surface rating of R10 or R11 for wet barefoot conditions. This is a duty-of-care requirement and a regulatory expectation across the UAE, not an optional specification upgrade.

Step 9 – Internal Fit-Out, Ceilings, and External Painting

⏱ Stage Duration: Half a day to 1 full day per unit

This step transforms the structural shell into a finished, habitable space. It is also where the difference between a quality manufacturer and a budget one is most immediately visible to the person who uses the cabin every day.

📸 [IMAGE #11 – Finished Interior of Office Cabin] Suggested image: Clean, bright interior of a finished porta cabin office showing suspended ceiling, PVC wall cladding, LED lighting, double socket outlets, and PVC vinyl floor. Alt text: “Finished interior of a manufactured porta cabin office – UAE site cabin with full fit-out”

Internal Wall and Ceiling Finishes

Wall Cladding:

• Standard occupied porta cabins are lined with pre-painted PVC wall cladding sheets in off-white or light grey.
• These provide a clean, wipe-clean, hard-wearing surface that resists humidity.
• In wet areas – toilets, showers, and kitchens – moisture-resistant PVC cladding with fully sealed joints replaces standard panels throughout.

Suspended Ceiling:

• Standard office porta cabins are fitted with a 600×600mm suspended grid ceiling using mineral fibre tiles with an NRC (Noise Reduction Coefficient) of 0.55–0.65, absorbing 55–65% of incident sound energy – a meaningful acoustic improvement inside a hard-walled metal structure.
• For accommodation cabins, PVC tongue-and-groove ceiling board provides a cleaner, continuous finish and better resistance to the moisture that builds up overnight in an occupied sleeping space.

External Paint System: Where Most Imported Cabins Fall Short

This is the most consistently underspecified element in porta cabins imported from European or Asian manufacturers. The GCC’s combination of extreme UV radiation, sustained temperatures above 50°C, severe thermal cycling, and constant dust abrasion demands a two-coat industrial paint system:

Stage 1 – Epoxy Primer:

• Applied at 35–50 microns DFT (Dry Film Thickness).
• Bonds to the prepared panel surface, seals the steel substrate against moisture ingress, and provides the adhesion base for the topcoat.

Stage 2 – UV-Resistant Polyurethane (PU) Topcoat:

• Applied at 35–50 microns DFT.
• Delivers long-term UV resistance, colour stability, and resistance to chalking and surface erosion.
• Total system DFT: 70–100 microns.

A standard alkyd paint finish – the common choice on budget-grade cabins – will chalk, lose gloss, and begin peeling within 12–18 months of outdoor UAE exposure. A correctly applied UV-resistant PU topcoat system retains its colour and protection for 5–7 years before a full recoat is needed.

Paint Colour Selection and Thermal Performance:

Cabins are finished in client-specified RAL colours. Common GCC choices include:

• RAL 9002 (grey white) – highest solar reflectance of the standard options.
• RAL 7035 (light grey) – widely used on construction site cabins across the UAE.
• RAL 6002 (leaf green) – common in accommodation villages and labour camps.

Lighter surface colours reflect more solar radiation and reduce the thermal load transmitted through the panel below – a compounding performance benefit across a large accommodation village or construction camp.

How to check the paint specification on delivery:

• Take five DFT readings across different external surfaces using a magnetic gauge.
• The reading should fall between 70 and 100 microns total.
• This check takes five minutes and immediately confirms whether the specified system was applied or whether a cheaper, thinner coating was substituted.

Step 10 – Quality Control, Load Testing, and Certification

⏱ Stage Duration: Half a day per unit

Nothing leaves a professional manufacturing facility without passing a documented, multi-point quality control inspection. QC is not an afterthought at the end of the process – it is the formal verification that every previous manufacturing stage has been completed correctly and to the agreed specification.

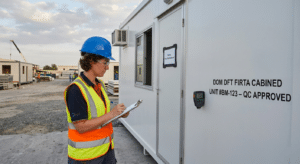

📸 [IMAGE #12 – QC Inspector Checking a Finished Cabin] Suggested image: Quality control inspector with clipboard and DFT gauge checking the external surface of a completed porta cabin before sign-off. Alt text: “Quality control inspection of finished porta cabin before delivery – Bait Al Maha UAE manufacturing”

The Eight-Point QC Inspection Checklist

Every manufactured porta cabin is checked against all eight criteria before delivery approval is given:

1. Structural weld inspection – visual check of all accessible chassis welds for cracking, undercut, porosity, or incomplete fusion. Any defective weld is marked, re-welded by a coded welder, and re-inspected before the cabin advances.
2. Panel alignment and joint seal check – all wall and roof panels verified for flush alignment within the frame and all sealant lines inspected for full continuity, correct width, and positive adhesion.
3. Door and window operation test – all doors checked for smooth operation, correct latch engagement, full three-point lock function, and weatherseal compression. All windows checked for opening, closing, locking, and glass integrity.
4. Electrical installation testing – all four BS 7671 tests carried out with results recorded on the Electrical Installation Certificate.
5. Plumbing pressure test – water systems tested at 1.5× working pressure for a minimum of one hour with no pressure drop recorded. Waste drainage tested by simultaneous full-flow discharge with all outlets open.
6. Floor levelness check – straight edge and feeler gauge. Accepted tolerance: ±2mm over any 1-metre length; ±5mm across the full cabin plan dimension.
7. External paint DFT measurement – minimum five readings taken across the external surfaces. All readings must fall within 70–100 microns total DFT.
8. Dimensional verification – overall length, width, and height checked against the approved GA drawing to a tolerance of ±5mm on all axes.

No cabin is approved for delivery until every point is either confirmed passed or re-confirmed passed following rectification.

ISO 9001:2015 Certification: What It Actually Means for You

ISO 9001:2015 is a management system certificate – not a product quality certificate. It confirms that the manufacturer operates a documented quality management system that has been independently audited and found to comply with the ISO 9001 standard.

In practical terms, it means the manufacturer:

• Has documented, controlled procedures for every stage of the production process.
• Maintains defined acceptance criteria for every inspection point.
• Keeps traceability records that allow any defect to be traced back to its production origin.
• Runs scheduled internal audits and formal management reviews.
• Implements documented corrective actions for every identified non-conformance.

Ask for the manufacturer’s ISO 9001 certificate number and the name of the issuing accreditation body. Both are publicly verifiable through the accreditation body’s online register. If a manufacturer claims certification but cannot produce the certificate, treat that claim with scepticism.

Step 11 – Delivery, Logistics, and Site Preparation

⏱ Stage Duration: Half a day for packing, loading, and documentation

The manufacturing process ends at the factory gate. What happens between the factory and your site determines whether a perfectly manufactured unit arrives and performs correctly from day one – or arrives damaged and misaligned because the receiving site was unprepared.

📸 [IMAGE #13 – Porta Cabin Being Crane-Lifted to Site] Suggested image: Mobile crane lifting a completed porta cabin off a flatbed low-loader onto a level concrete base on a construction site. Alt text: “Porta cabin delivery and crane installation – UAE construction site, Bait Al Maha logistics”

Delivery Mode 1: Fully Assembled

The cabin is transported in its complete, finished state on a flatbed trailer or low-loader. On arrival, a mobile crane lifts the unit using a four-point lifting beam connected to the ISO corner fittings or fabricated lifting lugs on the chassis.

Site requirements for fully assembled delivery:

• Access road – minimum 4 metres wide, with a surface capable of supporting a fully loaded articulated truck at 30–40 tonnes gross vehicle weight.
• Crane – rated for the required lift weight at the required outreach from the nearest safe access point. A standard 6m × 3m office cabin weighs approximately 2,500–3,500 kg as a basic unit, increasing significantly with full plumbing fit-out or a roof-mounted water tank. A formal lift plan must be produced by the crane company before the lift proceeds.
• Abnormal load permit – required in the UAE, KSA, and most GCC jurisdictions for cabins that exceed standard vehicle width or height limits. Permits take time to arrange and must be factored into the delivery programme from the outset.

Delivery Mode 2: Flat-Pack (Knocked Down)

The cabin is systematically disassembled into panels, frame sections, doors, windows, and packaged electrical and plumbing components, then loaded into a standard 20ft or 40ft shipping container for transport.

The key advantages of flat-pack delivery:

• International shipping – the most significant benefit. A 6m × 3m cabin flat-packed occupies approximately one-third of a 40ft container, allowing multiple units per shipment and significantly reducing per-unit freight cost.
• Remote site access – flat-packed units can reach locations where a low-loader and crane cannot go, carried in on a standard truck and assembled in place.
• No crane required on site – ground-level assembly by four trained workers using basic hand tools, in 1–2 working days per unit.

Flat-pack delivery is widely used for export from the UAE to East Africa, South Asia, and remote GCC oilfield locations where ocean freight is more economical than overland transport of assembled units.

✅ Site Preparation Checklist

Before confirming the delivery date, verify that all of the following are in place:

1. ✅ Level base – concrete slab (C25/30 minimum, 150mm thick) or compacted hardcore blinded with gravel. Maximum acceptable variation across the full cabin footprint: 15mm. An uneven base introduces racking forces into the frame that affect door and window operation and, in severe cases, structural performance.
2. ✅ Access road – minimum 4-metre clearance width with adequate turning radius for the delivery vehicle.
3. ✅ Crane position – level, firm hardstanding for the outrigger pads, free of underground services, within the crane’s required working radius.
4. ✅ Utility connection points – electricity, water, and drainage connections within 3–5 metres of the intended cabin position to avoid extended service runs.
5. ✅ Delivery permit – confirmed and in hand before the scheduled delivery date, with any required police notification completed.

Key Materials at a Glance

Use this reference table when reviewing any porta cabin manufacturer’s quotation for a UAE or GCC project. Every specification listed below is what a quality, correctly manufactured porta cabin should deliver as its baseline – not as a premium option.

Component	Correct Material	Minimum Specification	Why It Matters in the GCC
Structural frame	Hot-dip galvanised structural steel	S275 or S355, BS EN 10025; galvanised to BS EN ISO 1461	Ungalvanised steel rusts within 12–24 months in coastal UAE environments
Corner posts	RHS steel + ISO 1161 corner fittings (stackable units)	Sized for calculated superimposed load per BS EN 1991	Mandatory for all multi-storey accommodation configurations
Wall panels	PU foam sandwich panel with pre-painted steel facings	75mm minimum; λ ≤ 0.025 W/m·K	50mm panels are European-climate spec and are thermally inadequate in the GCC
Roof panels	PU foam sandwich panel + waterproof membrane	75mm minimum; bituminous membrane on flat roofs	UV-resistant membrane required – standard bitumen degrades rapidly under GCC sun
Sub-floor	Fibre cement board	12mm FCB to BS EN 12467	Does not swell, delaminate, or support mould in coastal and high-humidity environments
Floor finish	Heavy-duty PVC vinyl	2mm HD vinyl, full-spread bonded; R10+ anti-slip in all wet areas	Mandatory anti-slip rating for all welfare, toilet, and shower blocks
External doors	Insulated steel sandwich door	40–45mm PU leaf; three-point locking	FD60 or FD90 fire-rated assemblies where required by UAE Civil Defence
Windows	Double-glazed PVC or aluminium	6/12/6 argon-filled; U-value ≤ 1.6 W/m²·K; g-value ≤ 0.4 for GCC	Solar control glass reduces west-facing cooling load by up to 60%
Hot water pipework	CPVC	Rated to 93°C continuous service temperature	Standard PVC fails at 60°C – thermally inadequate for UAE ambient and solar pipe conditions
External paint	Epoxy primer + UV-resistant PU topcoat	70–100 microns total DFT	Alkyd paint chalks and peels within one to two UAE summers
Joint sealant	Neutral-cure silicone	ISO 11600 Class F25 or better	Acetoxy silicone releases acetic acid on curing, accelerating corrosion at galvanised steel joints

What Separates a Quality Porta Cabin from a Budget One

Two quotations sitting side by side on a desk may be 15% apart in price and appear to describe the same product on paper. In practice, that gap often represents a 15-year difference in usable service life. The total cost of ownership – factoring in energy bills, maintenance, early replacement, and downtime – almost always favours the quality unit when calculated over any deployment of five years or more.

📸 [IMAGE #14 – Quality vs Budget Comparison Visual] Suggested image: Split-image comparing a well-maintained quality porta cabin exterior (clean paint, sealed joints, solar control windows) versus a deteriorating budget unit (chalking paint, rust stains, peeling panels). Alt text: “Quality vs budget porta cabin – why specification matters for UAE and GCC deployments”

Five Questions to Ask Any Porta Cabin Manufacturer Before Signing

Before committing to a purchase order, put these five questions directly to the manufacturer:

1. Can you provide Mill Test Certificates for the structural steel used in the chassis?
2. What panel core material and thickness do you supply as your GCC standard, and what is the thermal conductivity value?
3. Is your electrical installation designed and tested to BS 7671 (IEE Wiring Regulations)?
4. What structural warranty do you offer, and exactly what does it cover and for how long?
5. Can I review your ISO 9001 certificate number and your QC inspection records for completed units?

A manufacturer who cannot answer all five questions specifically and in writing either has insufficient quality systems to guarantee a consistent product or has something in the manufacturing process they would rather a buyer not examine closely.

What Imported European and Asian-Spec Cabins Get Wrong in the GCC

Porta cabins manufactured to European or Asian temperate-climate standards fail several GCC-specific requirements simultaneously once deployed in the Gulf:

• 50mm insulation panels allow rapid heat transfer through the envelope, overloading the air-conditioning system and making the interior genuinely uncomfortable to occupy in summer.
• Standard PVC hot water pipes soften and fail when pipe temperatures exceed 60°C – a threshold easily reached in UAE summer supply conditions.
• Alkyd paint finishes chalk, lose adhesion, and peel within one to two UAE summers, exposing the panel surface to direct UV radiation and moisture penetration.
• Clear double-glazed windows without solar control coating allow solar heat gain that a correctly sized AC unit still struggles to manage in peak afternoon conditions.
• No pre-installed HVAC sleeve leaves site teams with no option but to cut their own openings in installed panels – permanently compromising thermal and structural integrity, as described in Step 5.

Specifying a porta cabin for UAE or GCC deployment means specifying for the actual climate the cabin will operate in – not for the temperate conditions the original manufacturer designed for.

Frequently Asked Questions

Questions sourced from Google People Also Ask – UAE/GCC market, May 2026

What materials are used to make a porta cabin?

A quality porta cabin uses an S275 or S355 hot-dip galvanised structural steel frame, insulated sandwich panels with a PU, EPS, or rockwool core between pre-painted galvanised steel facings, a 12mm fibre cement board sub-floor, PVC or aluminium double-glazed windows, insulated steel doors, heavy-duty PVC vinyl flooring, and a UV-resistant two-coat epoxy and PU external paint system. For GCC deployments, CPVC pipework rated to 93°C is specified for all hot water lines. Every material choice affects service life, energy consumption, and maintenance cost in service.

How long does it take to manufacture a porta cabin?

A standard porta cabin takes five to seven working days from chassis fabrication to QC inspection and delivery loading. Custom units with complex plumbing, specialist finishes, or multi-room layouts take 10–15 working days. The client design and approval stage described in Step 1 adds 1–3 days for standard designs before fabrication can begin. For large volume orders, phased delivery schedules are agreed with the client so the programme is met without compromising production quality.

Are porta cabins properly insulated?

Yes – when correctly specified for the operating environment. Modern porta cabins use factory-bonded insulated sandwich panels. For UAE and GCC climates, 75mm PU foam panels are the standard minimum, delivering a U-value of approximately 0.28 W/m²·K. This reduces air-conditioning energy demand significantly compared to the 50mm panels (U-value ~0.44 W/m²·K) routinely supplied in European-market cabins. The correct panel thickness is not a premium – it is the minimum adequate specification for the GCC climate.

What is the lifespan of a porta cabin?

A well-manufactured porta cabin with a hot-dip galvanised chassis and a UV-resistant PU paint system lasts 25–30 years with routine maintenance. Budget units using uncertified steel, alkyd paint, and 50mm panels typically require major intervention within 8–12 years in GCC conditions – structural corrosion, paint failure, and insulation degradation all compound simultaneously in a climate this demanding.

Do porta cabins need a foundation?

No permanent foundation is required. Porta cabins are designed to sit on a level concrete slab, compacted gravel base, or adjustable steel jack legs. The base must be level to within 15mm across the full cabin footprint. An uneven base introduces racking into the frame and affects door and window operation. No ground excavation or concrete piling is needed – a significant time and cost advantage over permanent construction in fast-moving project environments.

Can porta cabins be customised?

Yes – fully, and from the design stage. Because porta cabins are manufactured in a factory before delivery, the design can be adjusted before fabrication begins. Clients can specify:

• Overall dimensions and internal room layout.
• Door and window positions and sizes.
• Insulation thickness and panel core type.
• Electrical load capacity and circuit configuration.
• Plumbing and drainage scope.
• External finish colour (RAL system) and internal cladding specification.
• Fit-out level from basic shell to fully furnished.

This level of pre-production customisation is one of the primary practical advantages of factory-based manufacture over site-built construction.

Can porta cabins be stacked for multi-storey use?

Yes – when specifically engineered for stacking from the design stage. Stackable porta cabins are manufactured with:

• ISO 1161-compliant corner fittings at all four corners.
• Corner posts sized and certified for the calculated superimposed loading.
• Stacking frame connectors rated for the full load from all units above.

Most GCC labour accommodation villages are built to two or three storeys using certified stackable units, with external staircase frames and guard rail systems providing safe inter-level access. A cabin not designed for stacking must never be placed in a multi-storey configuration – this is a structural safety requirement.

How are porta cabins delivered to site?

Porta cabins are delivered by one of two methods:

• Fully assembled – transported on a flatbed trailer or low-loader, crane-lifted to final position on site. Ready for utility connection and immediate use.
• Flat-packed (knocked down) – disassembled into panels and frame components, packed into a standard 20ft or 40ft shipping container, and re-assembled on site in 1–2 working days by a four-person team. No crane required at the delivery site.

The delivery method depends on site access, distance from the factory, and whether international shipping is involved.

What is the difference between a porta cabin and a modular building?

A porta cabin is a specific type of modular building – compact, relocatable, and designed for temporary or semi-permanent site use. A modular building is the broader product category, which also includes larger, permanently installed structures such as multi-storey residential blocks, hospitals, and schools, engineered to full building-code standards and designed to remain in place indefinitely. The manufacturing principle – factory production before site assembly – is shared. The regulatory treatment, structural engineering standards, and intended service life are different.

Are porta cabins suitable for extreme UAE heat?

Yes – when the unit is correctly specified for the climate. A porta cabin with 75mm PU insulation panels, solar control double glazing, and a UV-resistant two-coat paint system performs reliably in UAE summer conditions when paired with an appropriately sized split air-conditioning unit. The critical point is that 50mm panels and clear glass – the standard European specification – are not adequate in the GCC. The insulation thickness and glazing specification must be matched to the actual climate, not to the cooler conditions the original manufacturer designed for.

Choosing the Right Porta Cabin Manufacturer

📸 [IMAGE #15 – Completed Project / Labour Camp Overview] Suggested image: Aerial or wide-angle shot of a completed multi-unit porta cabin accommodation village or site office complex, showing stacked units, external staircase, and neat site layout. Alt text: “Completed porta cabin accommodation village – Bait Al Maha modular construction project UAE”

Understanding how porta cabins are manufactured gives you a clear, practical framework for evaluating any supplier across the UAE, Saudi Arabia, Qatar, or the wider GCC. The steps and specifications described in this guide are not aspirational – they represent what professionally manufactured porta cabins should deliver as their baseline.

Whether you are sourcing a site office cabin for a construction project, a multi-storey labour accommodation village for a large workforce, a welfare block for an oil and gas operation, a container office or a specialist modular facility – the specification you lock in before signing a purchase order is the most important decision you will make about the product.

Reviewing a manufacturer’s actual production process – the steel grades they use as standard, the panel thickness they specify for the GCC climate, how they test electrical installations, and what certification they can produce on request – tells you more about the product you will receive than any brochure can.

To see how different porta cabin types have been delivered and deployed across the UAE and GCC, explore our completed projects. To understand the full range of modular building services available – from initial consultation through manufacture, transport, and installation – visit our services page. If you have a specific project brief and want a specification-matched quotation within 48 hours, contact the Bait Al Maha team directly.
