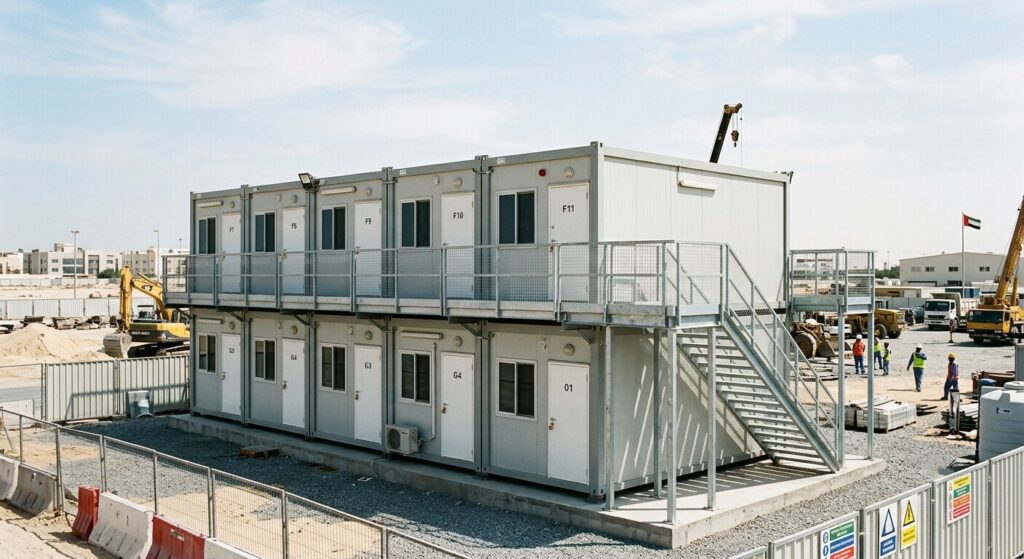

Stacking Porta Cabins: How Multi-Story Site Office Blocks Work
Stacking porta cabins means placing prefabricated steel-framed units directly on top of one another, so that the weight of every upper floor is carried through reinforced corner posts and a bolted chassis rather than through the walls. The units are leveled on a reinforced foundation, connected with bolted corner castings or twist-lock connectors, cross-braced against wind, and accessed through external staircases, internal stairwells, or bridging walkways. Here is the short version, broken down into the four facts that matter most: Standard site office cabins stack safely to two or three floors without special engineering. Weight travels through the four corner posts, not through the walls, floor, or roof panels. Taller stacked systems exist, usually built from modified shipping containers or engineered volumetric modules, but they need certified structural design and permanent foundations. Wind load, not gravity, is what actually limits stacking height on a standard steel-frame office cabin. Everything below explains why each of these is true, what changes when stacking porta cabins in the UAE specifically, and how to decide whether a stacked, double-story, or single-story configuration is the right call for your site. What Does Stacking Porta Cabins Actually Mean? Before getting into the engineering, it helps to clear up a mix-up that trips up almost every first-time buyer. Stacking and joining are not the same thing. Joining means placing two or more cabins side by side on the same level and removing the shared wall so they read as one continuous space. This is horizontal expansion. It adds floor area but does not touch the roof line. Stacking means placing one cabin’s floor directly on top of another cabin’s roof. This is vertical expansion. It adds height, and it changes the entire structural conversation, because every unit below now has to carry the weight of everything above it. Most real site office blocks combine both methods: Ground floor: joined side by side to create a wide reception or open-plan area. Upper floors: stacked on top of part of that footprint to add a second or third level. The result: this is what people usually mean when they say “double story office” or “stacked site office block,” and it is the most common configuration requested by contractors mobilizing on constrained plots across Dubai, Sharjah, and Abu Dhabi. Real examples of this layout are on the projects page. There are also two distinct families of stackable structures worth knowing apart: Modular steel-frame porta cabins – purpose-built office units with a welded steel chassis, corner posts, and insulated sandwich panel walls. This is the standard product used for most site offices in the UAE, including the range of site office and double-story office solutions built for construction and industrial projects. Container conversions – ISO shipping containers that have been cut, insulated, and fitted out as offices, stores, or accommodation. These share the same corner-casting logic as shipping containers, because structurally, that is exactly what they still are underneath the fit-out. Both types stack. Both rely on the same basic physics. But they behave differently at height, in wind, and in cost, which is why the rest of this guide treats them separately wherever that difference actually matters. Stacking Porta Cabins Safely: The Structural Mechanics Explained This is the part most articles either skip or oversimplify. Here is the actual mechanism, explained the way a site engineer would explain it to a project manager standing next to a crane. The Load Path Runs Through the Corners, Not the Walls Picture a steel table. The tabletop can be glass, wood, or laminate – it does not matter, because it is not holding anything up. The legs do all the work. A porta cabin is built on the same logic. The four corner posts and the steel chassis beneath the floor form the “legs.” The walls, usually insulated sandwich panels with a polyurethane, EPS, or rockwool core, are cladding. The walls keep weather and noise out, but they carry none of the vertical load. This has two practical consequences on site: Almost any internal layout can be specified, interior partitions can be removed, and oversized windows can be fitted without touching the structural integrity of the unit, as long as the corner posts and chassis frame stay untouched. A damaged wall panel is only a cosmetic repair, while a dented or corroded corner post is a structural issue that has to be assessed before that unit goes anywhere near a stack again. When a second cabin is placed on top of a first, its four corner posts sit directly above the first cabin’s four corner posts, and the weight travels straight down through that column of steel into the foundation. If those corner posts are even a few centimeters out of alignment, the load stops traveling cleanly through the frame and starts loading the floor or roof panel instead – components that were never designed to carry it. Corner-post misalignment is the single biggest cause of stacked cabin problems, more than any other factor, and it is a leveling issue long before it becomes a strength issue. How the Units Actually Connect Three connection systems dominate the market, and the choice between them says a lot about what the block is being used for. Bolted corner-plate connections. Steel plates are bolted through the aligned corner posts of the upper and lower units. This is the standard for office-grade porta cabins, because it creates a rigid, low-movement joint that matters when people are working at desks on the floor above and do not want to feel every gust of wind. Twist-lock connectors. The same cone-and-rotate fitting used to lock shipping containers together on a vessel or in a container yard. Corner castings on shipping containers are rated to carry very large loads, commonly quoted at 60 to 86 tonnes per corner casting depending on the container generation and standard, with a typical stacking test rating around 192 tonnes for the whole unit, according to container engineering references. Twist-locks are fast
